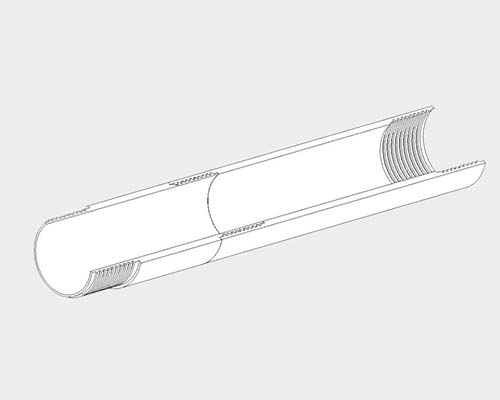

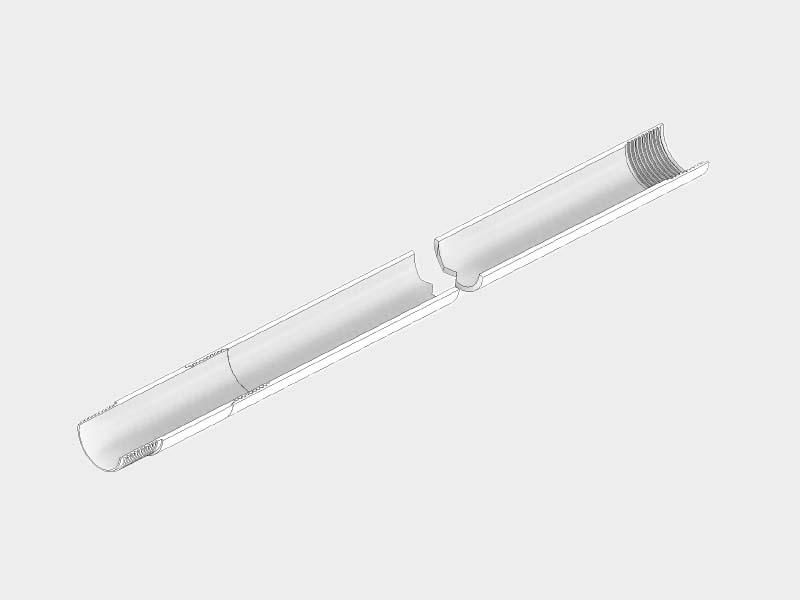

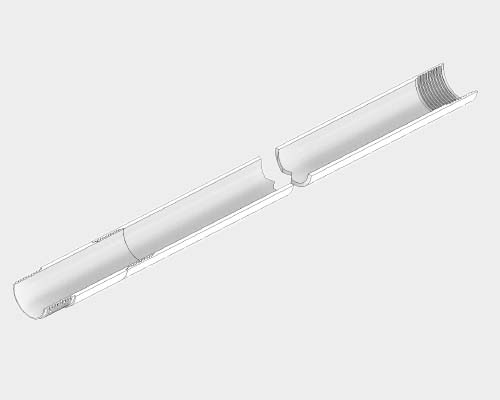

- X시리즈 케이싱파이프 제원(커플러 체결)
| 케이싱파이프 | O.D. (mm) |
I.D. (mm) |
Threads per inch (T.P.I.) |
Weight (kg/3M) |
| PX | 139.7 | 130.2 | 5 | 47.4 |
| HX | 114.3 | 104.8 | 5 | 38.5 |
| NX | 88.9 | 81.0 | 8 | 24.8 |
| BX | 73.0 | 65.1 | 8 | 20.2 |
Products
| 케이싱파이프 | O.D. (mm) |
I.D. (mm) |
Threads per inch (T.P.I.) |
Weight (kg/3M) |
| PX | 139.7 | 130.2 | 5 | 47.4 |
| HX | 114.3 | 104.8 | 5 | 38.5 |
| NX | 88.9 | 81.0 | 8 | 24.8 |
| BX | 73.0 | 65.1 | 8 | 20.2 |
